TrueNAS M-Series

TrueNAS M-Series is designed to maximize storage capacity, performance and uptime.

It is the flagship TrueNAS® appliance, equipped with the flexibility to meet a range of demanding storage requirements and adapt over time as needs change.

With high availability options and advanced data management tools, the TrueNAS M-Series secures data for mission-critical operations where downtime is not an option.

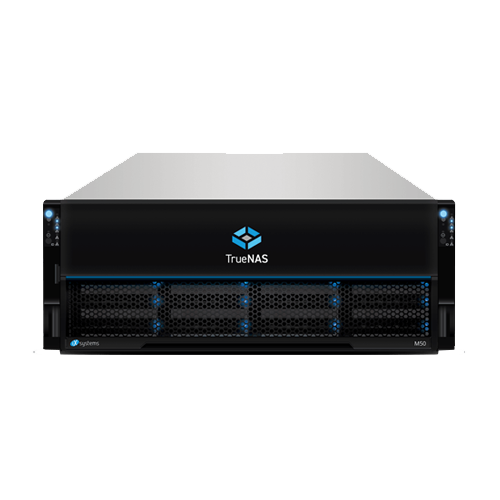

TrueNAS M-Series Produktbild

TrueNAS M-Series for enterprise

All-flash or hybrid of hard disk and flash memory? The M-Series can do both. The combination of extensive system RAM, NVDIMM, and NVMe flash as layered cache delivers industry-leading read and write efficiency and optimizes primary storage performance.

Flash pools are congested, and high-density disk pools deliver low-latency flash performance with disk capacity and cost. Fusion Pools, which consist of both disk and flash, offer the best of both worlds. With up to four 100Gb/s network ports per controller, the TrueNAS M-Series is designed to move terabytes at maximum speed.

TrueNAS Mini E Produktbild

TrueNAS M30

Rack Space: 4U
Controller: Single & Dual
DRAM: 64 GB
Drives: Up to 24
Ethernet: 2x 40 GbE
Fibre Channel: 2x 16 Gb

Expansion Shelves: 0
OS: Enterprise
Warranty: 1 Year (expandable)
Features: unrestricted
License costs: none
Support: Learn More

TrueNAS Mini E Produktbild

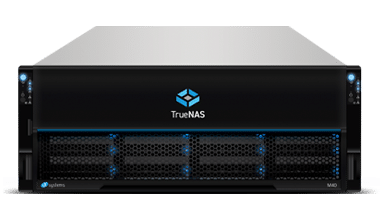

TrueNAS M40

Rack Space: 4U
Controller: Single & Dual
DRAM: 128 GB – 192 GB
Drives: Up to 144
Ethernet: 2x 40 GbE
Fibre Channel: 4x 16 Gb

Expansion Shelves: 2
OS: Enterprise
Warranty: 1 Year (expandable)
Features: unrestricted
License costs: none
Support: Learn More

TrueNAS Mini E Produktbild

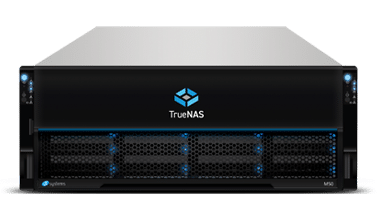

TrueNAS M50

Rack Space: 4U
Controller: Single & Dual
DRAM: 256 GB – 384 GB
Drives: Up to 504
Ethernet: 2x 100 GbE
Fibre Channel: 4x 16 Gb / 2x 32 Gb

Expansion Shelves: 8
OS: Enterprise
Warranty: 1 Year (expandable)
Features: unrestricted
License costs: none
Support: Learn More

TrueNAS Mini E Produktbild

TrueNAS M60

Rack Space: 4U
Controller: Single & Dual
DRAM: 768 GB
Drives: Up to 1248
Ethernet: 4x 100 GbE
Fibre Channel: 4x 32 Gb

Expansion Shelves: 12
OS: Enterprise
Warranty: 1 Year (expandable)
Features: unrestricted
License costs: none
Support: Learn More

Scale Up or “SCALE” Out

Start building a scalable, hyper-converged virtualization infrastructure with SCALE or use Enterprise for high-performance, ultra-reliable local HA storage. Expand to over 20 PB on a single M60 head unit with support for up to 12 expansion shelves, or use TrueNAS SCALE to cluster over 100 systems together for massive capacity and performance.

Storage you can rely on

Unsurpassed data security in software and hardware. The OpenZFS file system is the ultimate in data security. Copy-on-write and bit-red detection ensure the integrity of your data from write to read. Dual controllers and high availability options provide over 99.999% uptime to keep your business running and applications running 24/7.

Hardware management and upgrades, simplified

Maintaining an M Series system is simplified by the modular, tool-less hardware design. Additional built-in enclosure management features save time and effort by providing a graphical representation of the system in the user interface, allowing you to monitor the health of your system from a single screen. As performance or capacity requirements change over time, a non-disruptive upgrade to higher-end M-Series controllers is easy.

Professional White Glove Support

In the unlikely event of a failure, you can rest easy knowing that all TrueNAS M-Series systems are backed by iXsystems’ professional support team in the USA. Flexible Bronze, Silver and Gold support options are available to help you achieve your goals.

TrueNAS M-Series in detail

Designed for maximum ZFS performance and high availability, and storage remains affordable. With advanced read and write caching and expansion to over 1200 drives, the M-Series is ideal for multi-PB storage. For high-performance applications, all-flash storage with TLC or QLC flash can provide low latency and very high IOPS at industry-leading prices.

Contact us for a system design and quote that fits your budget.

Compare TrueNAS® M-Series

TrueNAS®M30M40M50M60
Rack Space4U4U4U4U
ControllersSingle & DualSingle & DualSingle & DualSingle & Dual
Drive Bays24 x 3.5"/2.5"24 x 3.5"/2.5"24 x 3.5"/2.5"24 x 3.5"/2.5"
DRAM per Controller64 GB128 GB - 192 GB256 GB - 384 GB768 GB
Write CacheOptional 16 GB SAS SSD(s)16 GB NVDIMM16 GB NVDIMM2 x 32 GB NVDIMM
Max Ethernet Speed2x 40 GbE2x 100 GbE2x 100 GbE4x 100 GbE
Fibre Channel (option)2x 16 Gb4x 16 Gb4x 16 Gb or 2x 32 Gb4x 32 Gb
Expansion Shelves Supported02812
Expansion Shelves-ES12 / ES24 / ES60ES12 / ES24 / ES60ES12 / ES24 / ES60 / ES102
Max Drives Supported241445041248
Max IOPS250K500K800K1.2M
Max Throughput2 GB/s5 GB/s10 GB/s20 GB/s
All-Flash
Max Raw Capacity184,32 TB1,10 PB 3,87 PB9,58 PB
Max Effective Capacity*460,80 TB2,75 PB9,67 PB23,95 PB
Hybrid Storage (HDD + Flash)
Max Read Cache800 GB SAS2x 1.6 TB NVMe4x 1.6 TB NVMe4x 3.2 TB NVMe
Max Raw Capacity432 TB2,59 PB8,64 PB22,46 PB
Max Effective Capacity*1,08 PB6,47 PB21,6 PB56,15 PB
CertificationsCitrix Ready, VMware Ready, Veeam Ready, Asigra Integrated

Expansion Shelves (M-Series)
